AL-TU34KA

Home Products & Solutions Projectors

Superior Performance
Upgraded T Pro Series Large Venue Projectors

AL-TL089SZ

Throw Ratio: 0.89 -1.29:1
F#: 2.35 - 2.49
f（mm）: 13.1 - 19.1
Screen Size: 100~600inch

AL-TL070FR

Throw Ratio: 0.7:1
F#: 2.5
f（mm）: /
Screen Size: 100~500inch

AL-TL200LZ

Throw Ratio: 2.0-4.0:1
F#: 2.5
f（mm）: 29-45
Screen Size: 100-700inch

AL-TL450TZ

Throw Ratio: 4.5-8.2:1
F#: 2.5
f(mm): 66.1 - 121.0
Screen Size:100~500inch

AL-TL366LZ

Throw Ratio: 3.66-5.94:1
F#: 2.5
f(mm): /
Screen Size: 100~600inch

AL-TL160LZ

Throw Ratio: 1.6-2.29:1
F#: 2.5
f (mm): 23.4 - 33.5
Screen Size: 100~600inch

AL-TL128MA

Throw Ratio: 1.28-1.81:1
F#: 2.5
f(mm): 18.7 - 26.5
Screen Size: 100~600inch

Superior Performance

Upgraded T Pro Series Large Venue Projectors

· ALPD® Blue and Red Laser

· 3DLP Projection System

· 31000-34000lm high brightness

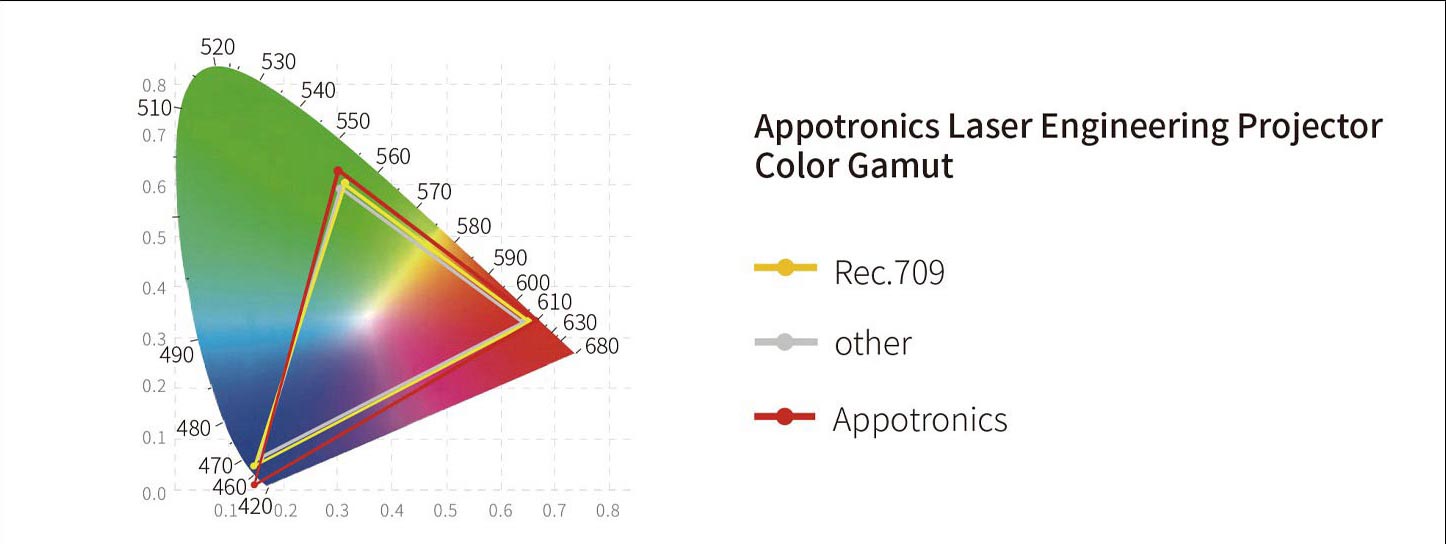

· Wide Color Space 120% Rec.709

· Compact Light Weight

· Input Backup

· 8 Optional Lenses

· Cinema Level Reliability

Up to 34,000lm of high brightness

Flawless shows with true-to-life colors every time

Red Color Ratio > 20%, for rich, vibrant and true-to-life visuals

120Hz high refresh rate for smoother motion

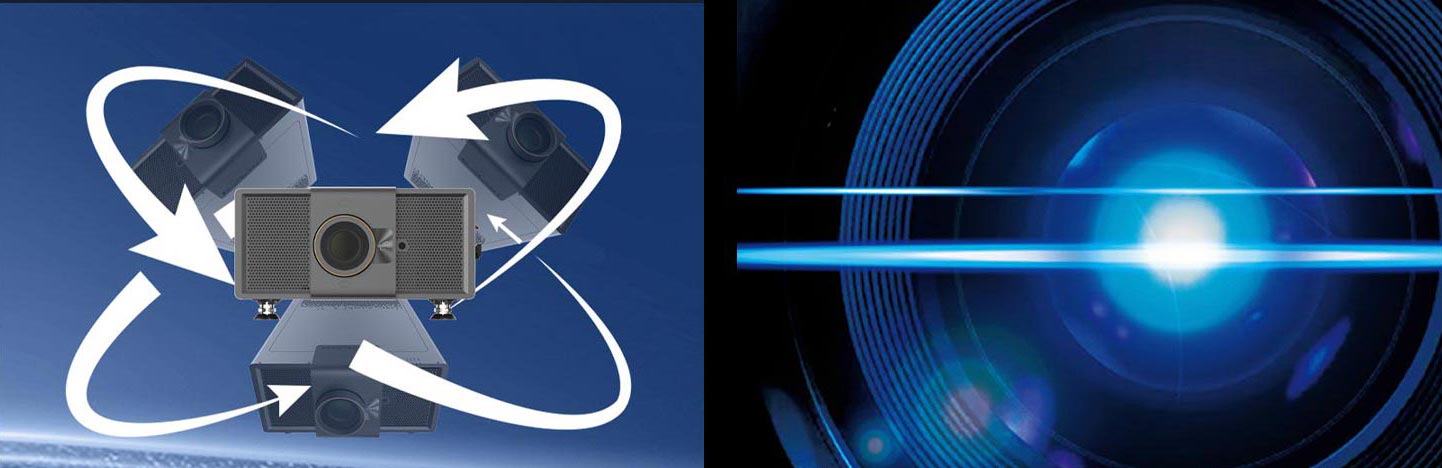

· 360° operates for unlimited installation flexibility

· 8 optional lenses ranges from 0.7:1 to 8.2: 1

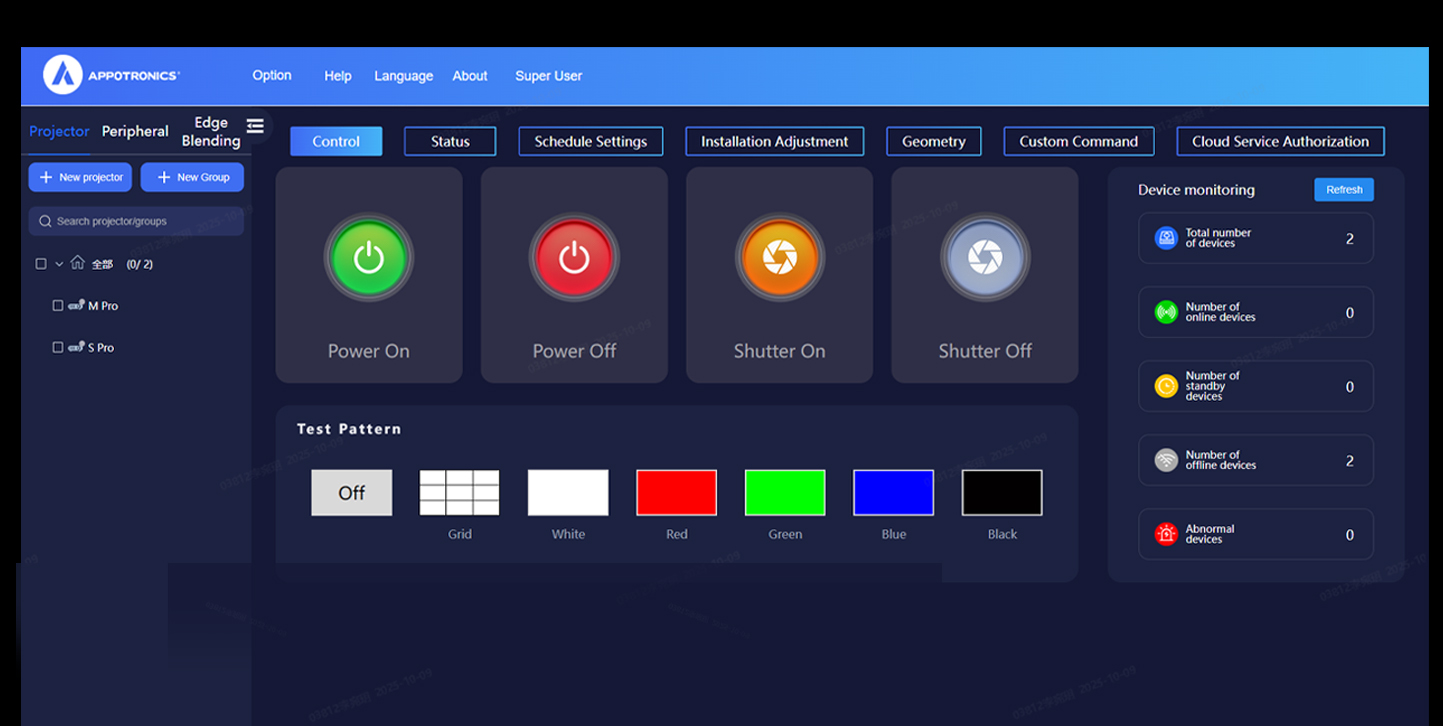

APCS (Appotronics Projectors Control System)

APCS is a unified platform for projector operation and maintenance, monitoring, and interconnection management, supporting a wide range of use cases. The professional APCS platform offers a free app for Apple, Android, and HarmonyOS, along with the Appotronics Projector Web UI.

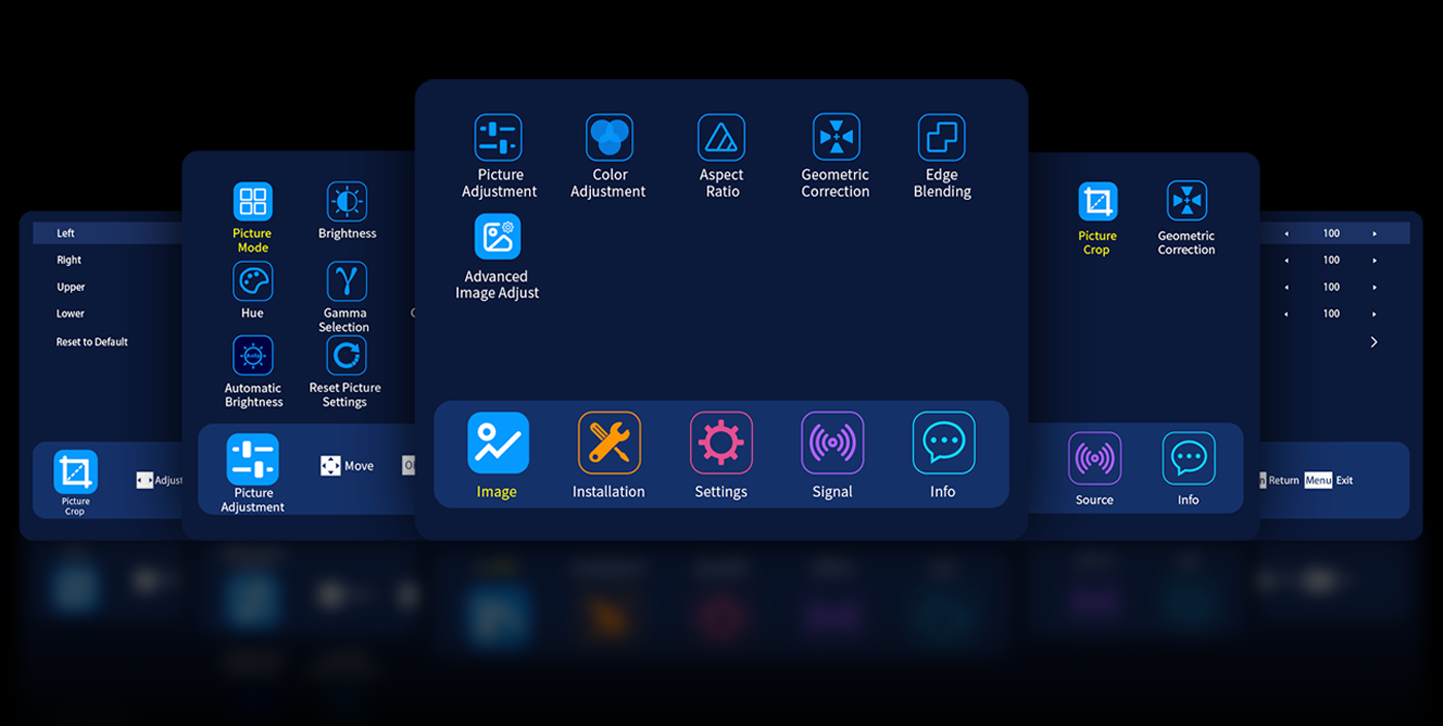

APOS (Appotronics On-screen Display)

Appotronics' upgraded on-screen display system offers comprehensive functions, unified operation, and easy adjustment. Thanks to this user-friendly menu, installation and adjustment become more intuitive, quick, and convenient.

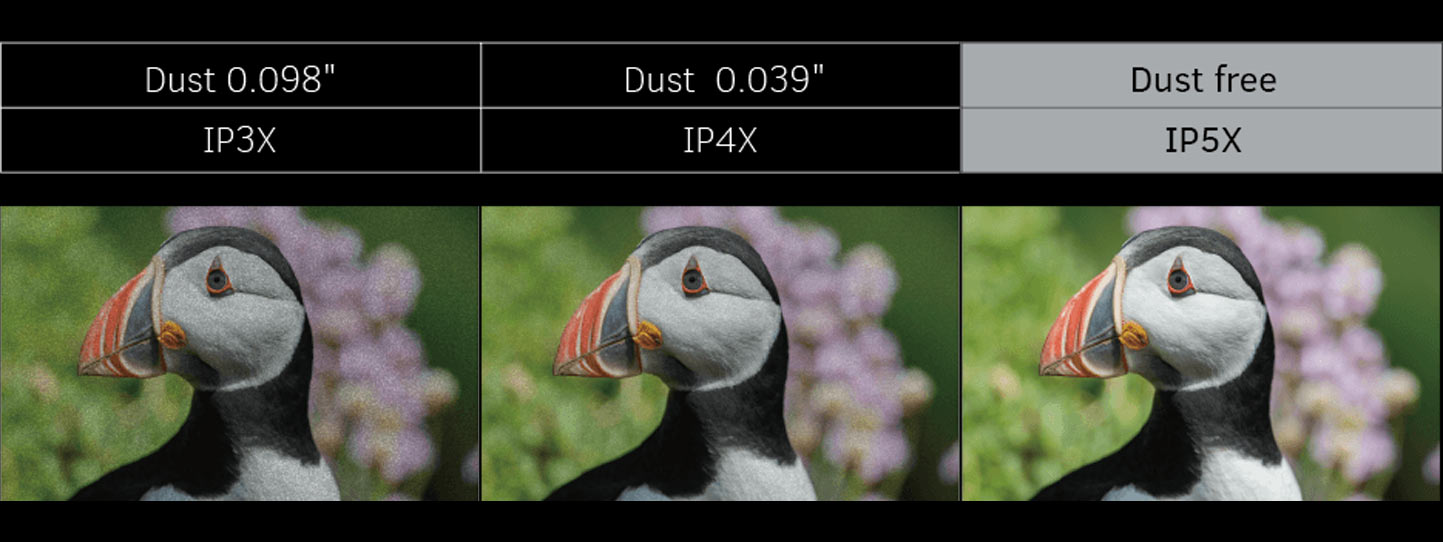

Fully Sealed Optical Engine with Filter-Free, Anti-Dust Structure

An IP5X-rated sealed optical engine protects every component from the light source to the core display chip.


20,000-Hour Lifespan — Proven Reliability

The first 20,000-lumen DCI ALPD® cinema projector entered service on July 10, 2014, and has delivered more than 10 years of reliable operation since then.

Specifications

Model		AL-TU34KA
Display Technology		DLP™ chipx3, DLP™ projection system
Resolution		1,920×1,200 (WUXGA)
Brightness Output①		32,000lm/34,000lm (Center)
Light Source Type⑥		Red and Blue Laser + ALPD® Laser
Contrast②		20,000h
Uniformity		>95%
Display Gamut		Rec.709
Edge Blending		Horitonal & vertical edge blending
Optional Lenses		Powered lenses 0.7:1, 0.8:1, 0.89-1.29:1, 1.28~1.81:1, 1.6~2.29:1, 2.13~4.16:1, 3.66-5.94:1, 4.5-8.2:1
Screen Size		70"~1000"
Keystone		Vertical & horizontal ±20°, corner keystone, multi-point keystone correction
Refresh Rate		WUXGA 120 fps; 4K decode, 4K 60 fps
Bandwidth		600MHz
Optical Axis Shift		Vertical: ±90%, Horizontal: ±40%, powered
I/O		HDMI×1/DVI-DX1/ HDBaseT X1/ VGA X1/ DisplayPort x1/ SDI X 2/RS-232 (IN & OUT) X2 Remote(IN&OUT) ×2/USB×1/RJ-45×1
Power Supply	Standard	3,400W
	Standby	<0.5W (ECO Standby)
Structure	Measurements③	30.7" X 23.9"X 11"
	Weight④	154 lbs
Noise		49dB
Working Environment	Temperature⑤	32°F~113°F
	Humidity	20%~80% (no condensation)
①Based on ISO21118 standard. ② Full white/full black. ③ Not including protruding parts. ④ Including standard lens. Average value. ⑤ Operation temperature will be set to 32° F~95° F when working under High Altitude Mode. Output of projector will be reduced to 50% if ambient temperature exceeds 95° F. ⑥ The output of the projector will have decreased by approximately 50% around this time. Data from accelerated lab simulations. Actual time may vary according to the operating modes, environment and other user behaviors.

Downloads

Download spec sheet
