S Smart Series
· ALPD®5.0 RGBX® Full-Color Laser
· 4K+ (3,840x2,400) WUXGA (1,920x1,200)
· 110% Rec.709
· 9 Optional Lenses, Throw Ratio 0.36~6.8:1
The S Smart Series boasts high brightness of 10,000–15,000 lumens, providing clear and vibrant images in any setting.
Utilizing an all-new RGBX laser engine, the S Smart features a wide color gamut with a red light ratio of more than 11% at 4K/WUXGA resolution.
APCS (Appotronics Projectors Control System)
APOS (Appotronics On-screen Display)
| Model | AL-SK15KAS | AL-SK13KAS | AL-SK10KAS | AL-SU15KAS | AL-SU13KAS | AL-SU10KAS | |
| Display Technology |
DLP™ chip×1, DLP™ projection system |
||||||
| Panel Size | 0.8"DMD | ||||||
| Resolution | 3,840x2,400 | 1,920x1,200 | |||||
| Brightness① | 15,000lm/16,000lm (Center) | 13,000lm/14,000lm (Center) | 10,000lm/11,000lm (Center) | 15,000lm/16,000lm (Center) | 13,000lm/14,000lm (Center) | 10,000lm/11,000lm (Center) | |
| Light Source | ALPD® 5.0 RGBX® Full-Color Laser | ||||||
| Light Source Lifetime② |
20,000h | ||||||
| Contrast | Native Contrast: ≥1,600:1 Full On/full Off: ≥100,000:1 |
||||||
| Uniformity | ≥92% | ||||||
| Color Gamut③ | ≥110% Rec.709 | ||||||
| Blending | Horizontal and vertical edge blending | ||||||

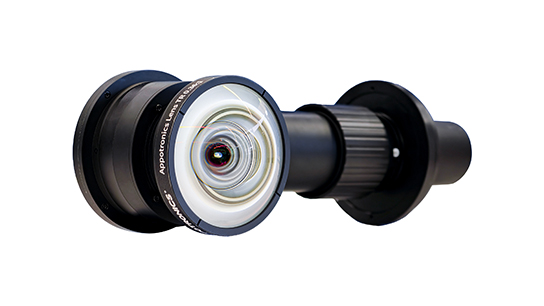

| Optional Lenses | 0.36:1; 0.53~0.63:1; 0.7~0.85:1; 0.85~1.1; 1.14~1.51:1; 1.5~2.4:1; 1.69~2.42:1; 2.4~3.8:1; 3.8~6.8:1 | ||||||
| Screen Size | 100"~800" | ||||||

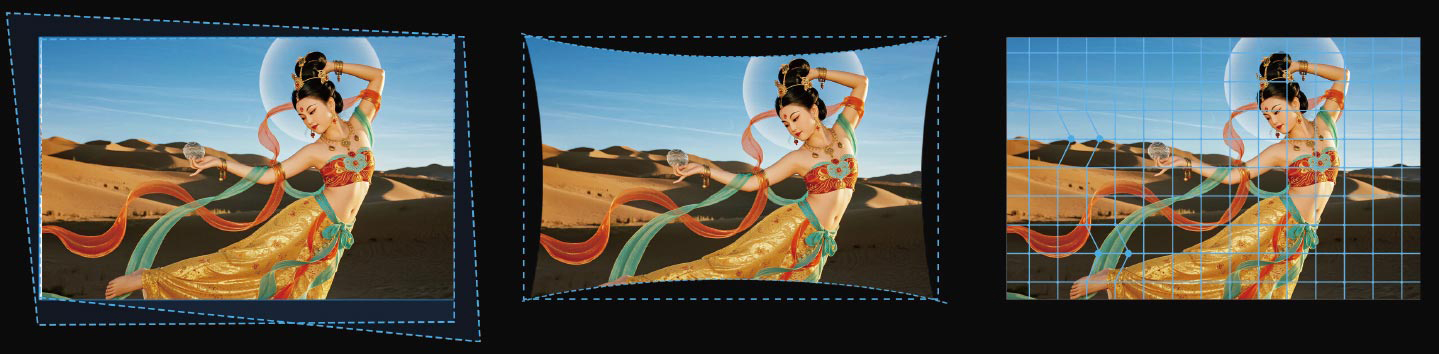

| Geometric Correction |
Corner, keystone, curve, multi-point (up to 33x33 points) | ||||||
| Lens Shift④ | Vertical: ±50%, Horizontal: ±20%, Motorized | ||||||
| Signal Interfaces | Input Signal: HDMI2.0x2(4K/60P); DVI-D, DP1.2 (4K/60P); HDEBaseT (3,840x2,400/60P) 3D SYNC Signal: 3D SYNC in; 3D SYNC out; IR 3D out Dynamic Contrast SYNC Signal: MULTI SYNC in; MULTI SYNCout |
||||||

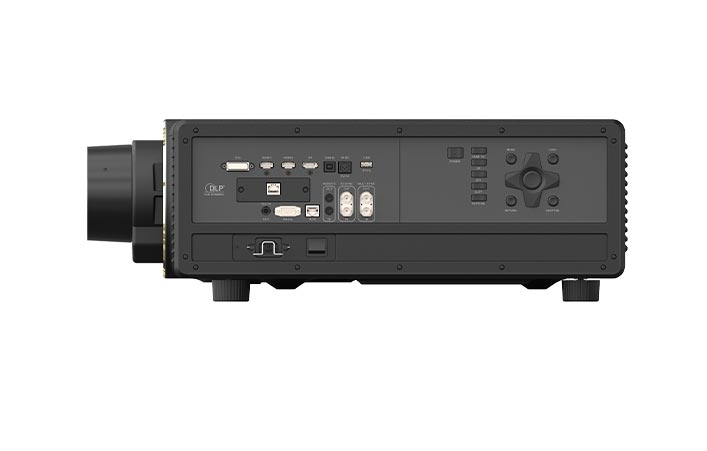

| Control Interfaces | Ethernet Port: RJ45 Serial Port: RS232 Infrared Extension Cable Port: Remote IR in/out Debug Port: USB-B |
||||||
| Other Interfaces | USB Expansion Port: USB-A 12V External Power Supply Port: Power 12V / 1A |
||||||
| Power Supply | 100~240V AC 50/60Hz | ||||||
| Power Consumption |
Typical Power⑤ |
1,050W | 800W | 700W | 1,050W | 800W | 700W |
| Standby Power⑥ |
0.5W | ||||||
| Installation | 360° Installation | ||||||
| Operation Noise⑦ | 40dB | 38dB | 37dB | 40dB | 38dB | 37dB | |
| Dimensions⑧ | 538mm×510xmm×190mm (LxWxH 21.1"× 20"×7.48" ) | ||||||
| Weight⑨ | 28.5kg (62.8lbs) | ||||||
| Temperature⑩ | 0~40°C (32°F~104°F) | ||||||
| Storage Temperature |
-10~+60°C (14°F~140°F) | ||||||
| Humidity | 10%~80% RH (No Condensation) | ||||||
|
①Comply with on ISO21118 standard.②Around this time, light output will have decreased by approximately 50%. Actual time may vary according to the operating modes, environment and other user behaviors.③The value is calculated based on the equivalent color gjamut area. ④Lens shift support: AL-XL070FR, AL-XL085FR, AL-XL110MA, AL-XL150MA, AAL-XL169MA, AL-XL240LA, AL-XL380LA: Vertical +50%, Horizontal +20%. AL-XL053FR: Vertical +20%, Horizontal +8%. AL-XL036FR TBD.⑤Measuring conditions: Operating on the Standard modeel, ambient temperature 25°C, 100~240V AC, 50/60 Hz.⑥Measuring conditions: In the Power Settings menu, select Power Standby ECO option, then turn off the projector into standby mode.⑦The test data was obtained at an ambient temperature of 25°C.⑧Structural protrusions and lens not included.⑨Lens not included.⑩Light source brightness may decrease depending on ambient temperature. When projector is operating at high temperature or at high altitude, brightness will decrease correspondingly. Light output of projector will be reduced to 50% if ambient temperature exceeds 40°C (104°F). |
|||||||
