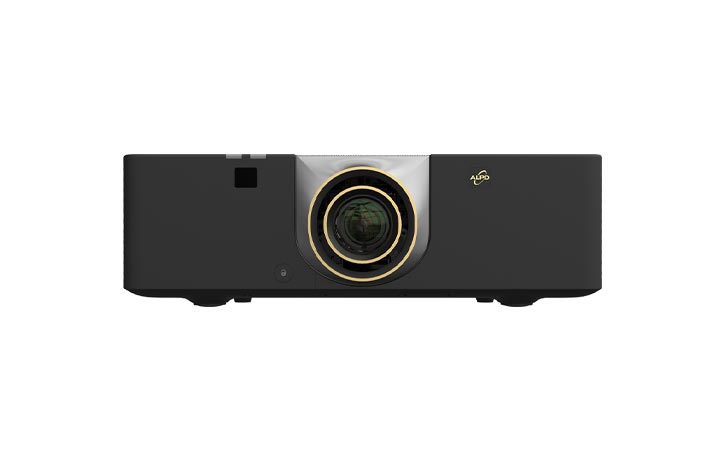

M Pro Series
· ALPD® Technology Red Ratio>12%
· 4K/1080P
· Optional Lenses
· 100% REC.709
Unprecedented Image Quality
The M Pro Series is equipped with Appotronics' signature ALFD light engine, at a brightness range of 6500 - 7500 lumens.
4K Professional Projectors
With an image resolution of 4K UHD and over 12% red ratio, the unit delivers high definition, super crisp pictures at the nnost precise color reproduction
Premium Visual Fidelity
Combined with advanced MEMC motion compensation and /AIPQ image enhancement, M Pro Series offers premium visual fidelity at very low latendсу.
Multi -screen color uniformity enables high color accuracy arnd eliminates chromatic discrepancies for consistent and coherent visual performance.
Featuring keystone correction, curved surface correction,and multi-point correction, this projector adapts to various projection angles and imaging surfaces, maaking it suitable for a wide range of applica tion scenarios.
Installation Flexibility
The M Pro Series gives you more flexibility in projector locaticon and orientation as it can run in any orientation.
APCS (Appotronics Projectors Control System)
APOS (Appotronics On-screen Display)
Specification
| Model | AL-MK650A | AL-MK750A | AL-MH650A | AL-MH750A | |
| Display Technology | DLPTM chip x 1, DLPTM projection system | ||||
| Panel Size | 0.47"DMD | ||||
| Resolution | 3,840×2,160 | 1,920×1,080 | |||
| Brightness① | 6,500lm | 7,500lm | 6,500lm | 7,500lm | |
| Light Source | ALPD® Laser Phosphor | ||||
| Light Source Lifetime② | 20,000h | ||||
| Contrast | Native Contrast: ≥1300:1 Full On/full Off: ≥100,000:1 | ||||
| Uniformity | ≥95% | ||||
| Color Gamut③ | Rec.709 | ||||
| Optional Lenses | 0.5:1 (manual) , 0.7-0.9:1, 1.0-1.6:1, 1.54-2.48:1 | ||||
| Screen Size | 80"~300" | ||||
| Blending | Vertical & Horizontal Adjustment:V: +35°, H:+35° 4-Point Keystone Correction, Curved Surface Correction (9FPoints), Multi-Point Correction |
||||
| Lens Shift | Vertical: ±50%, Horizontal: ±20%, Motorized | ||||
| Input Resolution | 4K 60HZ, 1080P 120HZ | ||||
| Terminal Interfaces |
Signal Interfaces |
HDMI in X2; HDMI out; USB-Ax2 (Supports 5V=2A) ; HDBaseT | |||
| Audio Interfaces |
S/PDIF out | ||||
| Control Interfaces |
LAN(RJ45); RS232(DB9); 3D SYNC×2(in/out); 3DIR OUT;USB-B | ||||
| Power Supply | 100~240VAC 50/60Hz | ||||
| Power Consumption |
Typical Power |
550W | 600W | 550W | 600W |
| Standby Power |
0.5W | ||||
| Installation | 360° Installation | ||||
| Operation Noise⑤ | 36dB (Standard) | ||||
| Dimensions⑥ | 460mm×388mm×138mm (LXWXH18.1"× 15.3"×5.4"( | ||||
| Weight⑦ | 12.5kg (27.6lbs) | ||||
| Temperature⑧ | 0~40°C (32°F~104°F) | ||||
| Humidity | 10%~80% RH (No Condensation) | ||||
|
①Based on ISO21118 standard.② Around this time, light output will have decreased by approxinhately 50%. Actual time may vary according to the operating modes, environment and other user behaviors.③ Calculated based on the equivalent area of the color gamuut.④ Multi-point correction supported by APCS.⑤ The test data was obtained at ambient temperature of 25°.⑥ Structural protrusions and the lens are not included.⑦ Lens is not included.⑧ Light source brightness may decrease depending on operating tempera ture. When projector is operating at high temperature or at hhigh altitude, brightness will decrease correspondingly. Light output of projectorwill be reduced to 50% if ambient temperature exceeds 40°C(104°F). |
|||||
