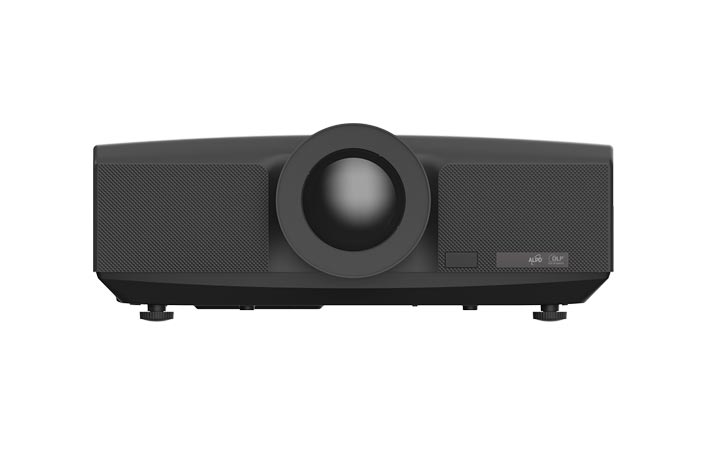

AL-DU935A

Home Products & Solutions Projectors

Excellent Performance,Incredible Value
D Pro Series High Brightness Installation Projector
Brightness and Feature Enhancements

AL-DL062FR

Throw Ratio: 0.62:1
F#: 2.1
f（mm）: 9.32
Screen Size: 80-300inch

AL-DL080FR

Throw Ratio: 0.8:1
F#: 2.1
f（mm）: 12.02
Screen Size: 80~300inch

AL-DL123MA

Throw Ratio: 1.23-1.97:1
F#: 2.2-3.1
f (mm): 18.14 - 32.65
Screen Size: 80-300inch

D Pro Series

Best Value 1- Chip DLP Laser Installation Projector

· 7,300 - 9,300 lumens

· The Signature ALPD Engine

· New User-Friendly OSD

Red ratio above 10% to provide high saturation colors

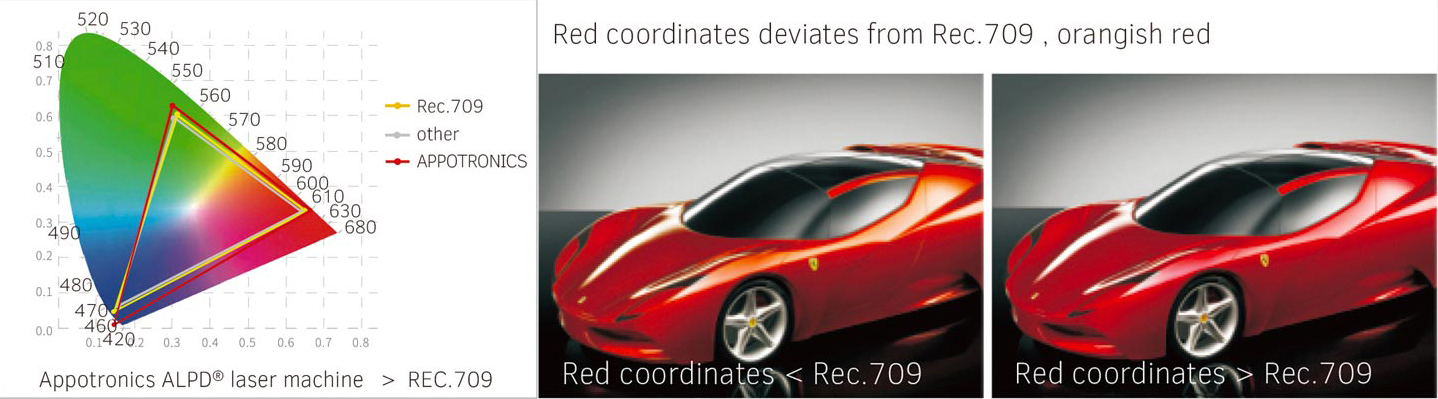

Coverage beyond Rec 709. More accurate and stable color rendition

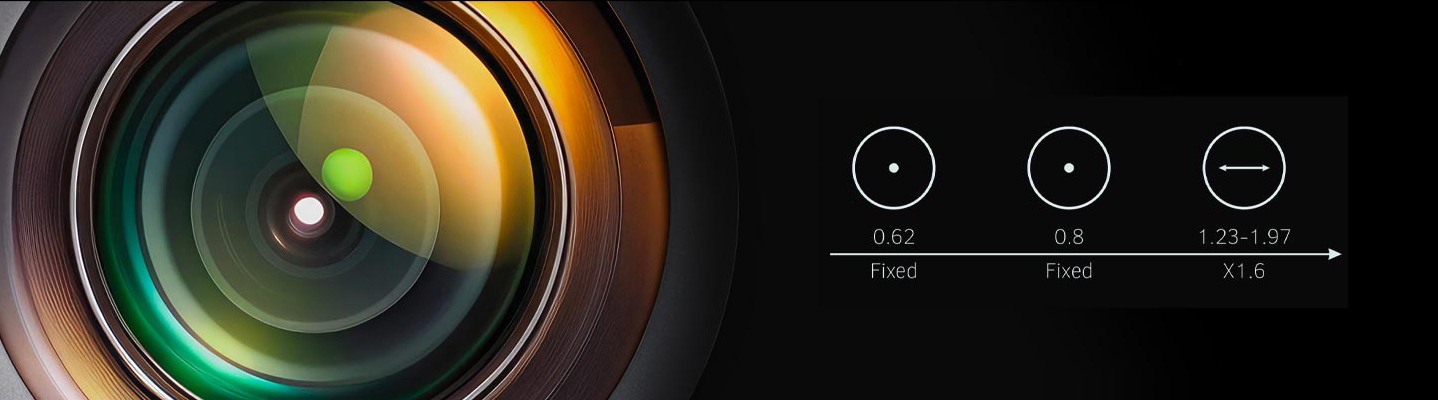

Optional Lenses

Added two short throw optional lenses to adapt to installations in smaller spaces.

Multi-color correction provides color/brightness uni-formity for any blended pictures

Projector O&M, monitoring and interconnection management platform
• Free APP for computer, tablet and phone
• Management and monitor on cloud platform or app

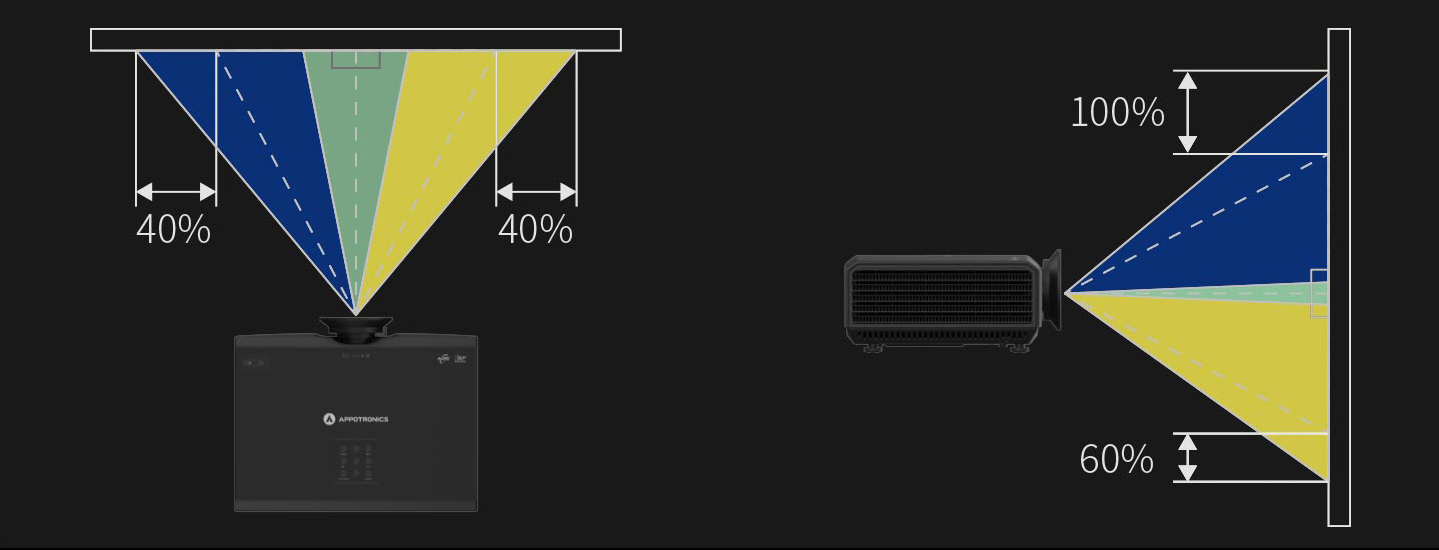

Wide Range Manual Lens Shift

H & V manual lens shift at +40% (horizontal) and +100%, -60%(vertical)

Support infrared 3D and DLP-link 3D.

APCS (Appotronics Projectors Control System)

APCS is a platform for projector operation and maintenance, monitoring management and interconnection managemeent that provides users with a wide range of application scenarios. Professional APCS platform has free app for apple, android and harmony, as well as Appotronics Projector Web UI.

APOS (Appotronics On-screen Display)

Apptronics upgraded on-screen display system offers comprre hensive functions, unified operation and easy adjustment. Thanks to this user-friendly menu, installation and adjustment will be more visual, quick and convenient.

Enhanced Reliability in Harsh Environments

All-new patented internal cooling technology manages theoperating temperature of color wheel and motor for stability.

IP6X rated dust-proof optical engine enables maintenance-free operation


20,000-Hour Lifespan - Proven Reliability

The 1st 20000lm DCI ALPD® cinema projector was put in service July 10th, 2014 and has amassed more than 10 years of use since.

Specification

Model		AL-DU735A	AL-DU835A	AL-DU935A
Display Technology		DLP™ ×1, DLP™ projection system
Panel Size		0.67″DMD
Resolution		1,920×1,200 (WUXGA)
Brightness Output①		7,300lm/7,600lm (Center)	8,300lm/8,600lm (Center)	9,000lm/9,300lm (Center)
Light Source Type		ALPD®Laser
Light Source Lifetime⑥		20,000h
Contrast②		100,000:1
Uniformity		90%
Display Gamut		REC.709
Lens Throw Ratio		0.62:1, 0.8:1, 1.23-1.97:1
Screen Size		80" ~ 300"
Geometric Correction		H+V: ±35°，4-corner keystone
Optical Axis Shift		Vertical: up 100%, down 60%, Horizontal: ±40%, powered
Input Resolution		1,920x1,200
I/O		DVI × 1 / HDMI × 2 / VGA × 1 / RS232 × 1 / M3 × 1 / RJ45 × 1 / USB × 1 / IR 3D out × 1
Power Supply		100-240V AC, 50/60Hz
Power Consumption	Standard	≤ 500W	≤ 550W	≤ 600W
	Standby	< 0.5W
Orientation		360° installation
Noise		35dB (standard mode)
Structure	Measurements③	490mm x 352mm x 161mm
	Weight④	≤13kg	≤14kg
Working Environment	Temperature⑤	0℃~40℃ (35℃~40℃ ECO mode)
	Humidity	20%~80% (no condensation)
① Based on ISO21118 standard. ② Full white/full black. ③ Not including protruding parts. ④ Including standard lens. Average value. ⑤ Operation temperature will be set to 0℃~ 35℃ when working under High Altitude Mode. Output of projector will be reduced to 50% if ambient temperature exceeds 35℃. ⑥ The output of the projector will have decreased by approximately 50% around this time. Data from accelerated lab simulations. Actual time may vary according to the operating modes, environment and other user behaviors.
