Ultra-Brightness
60,000 lux @100m, capable of punching through the brightest city skylines and dominating visual tension.

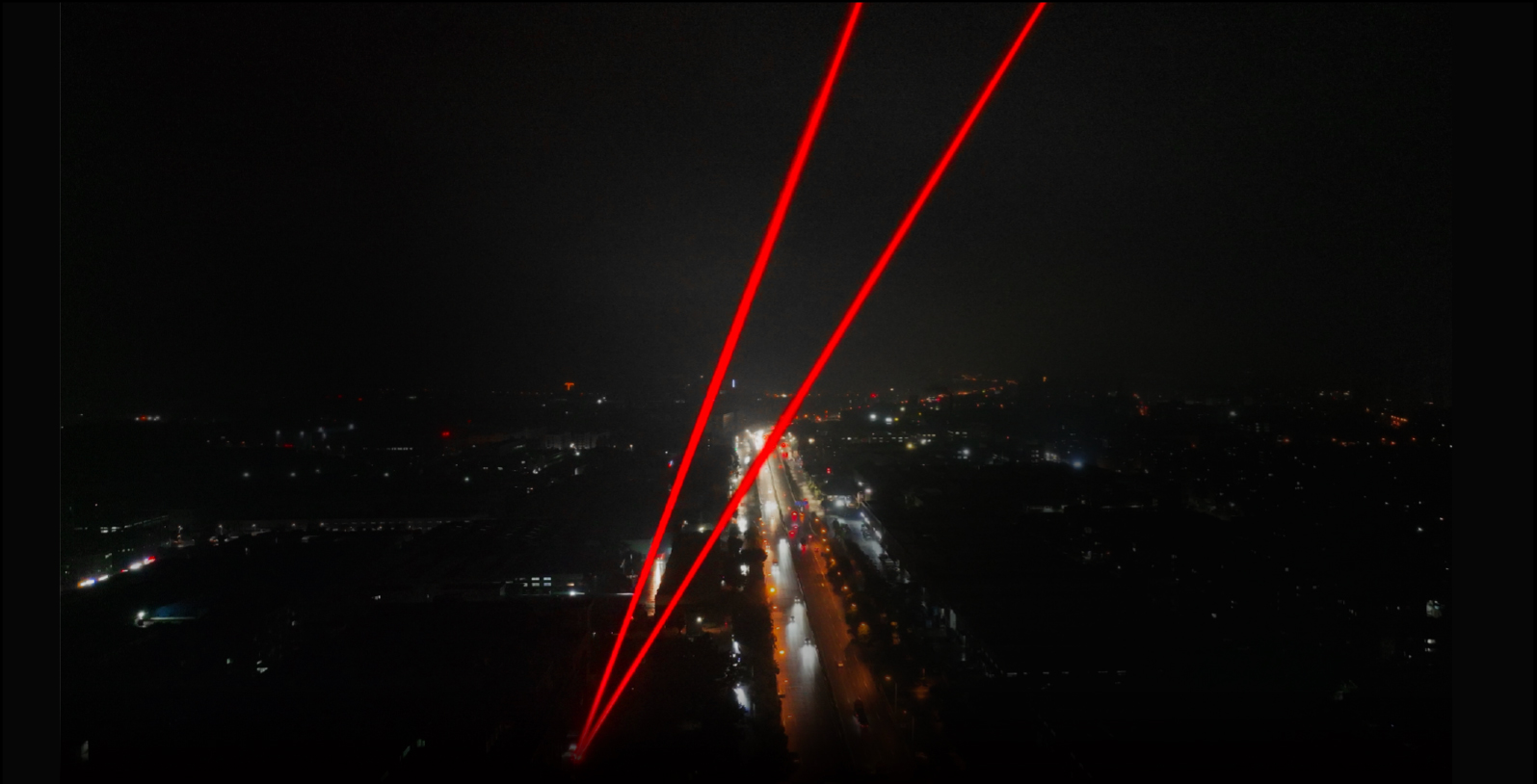

Reach Beyond
Visible from miles away, perfect for grand performance, effortlessly creating a visual focal point.

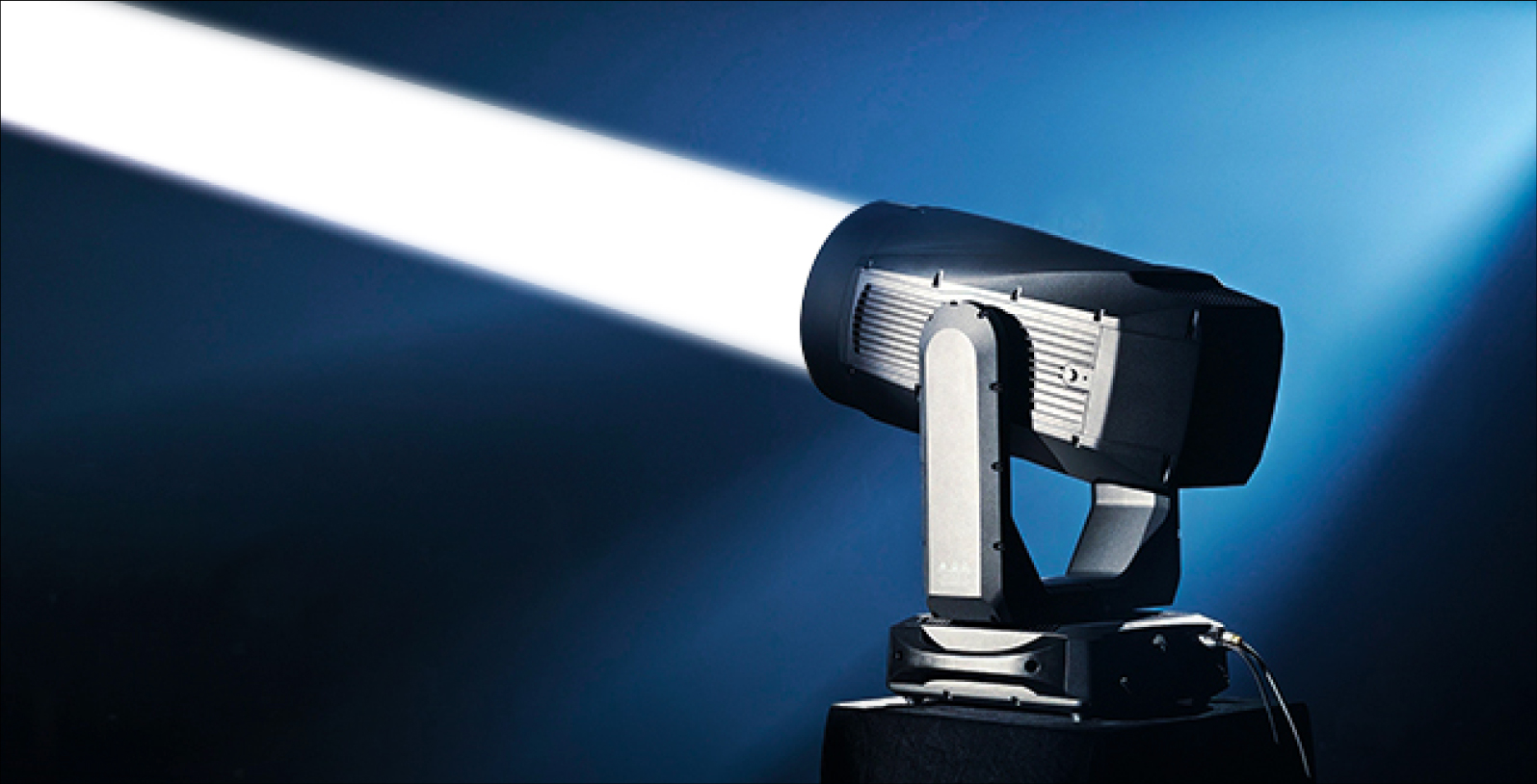

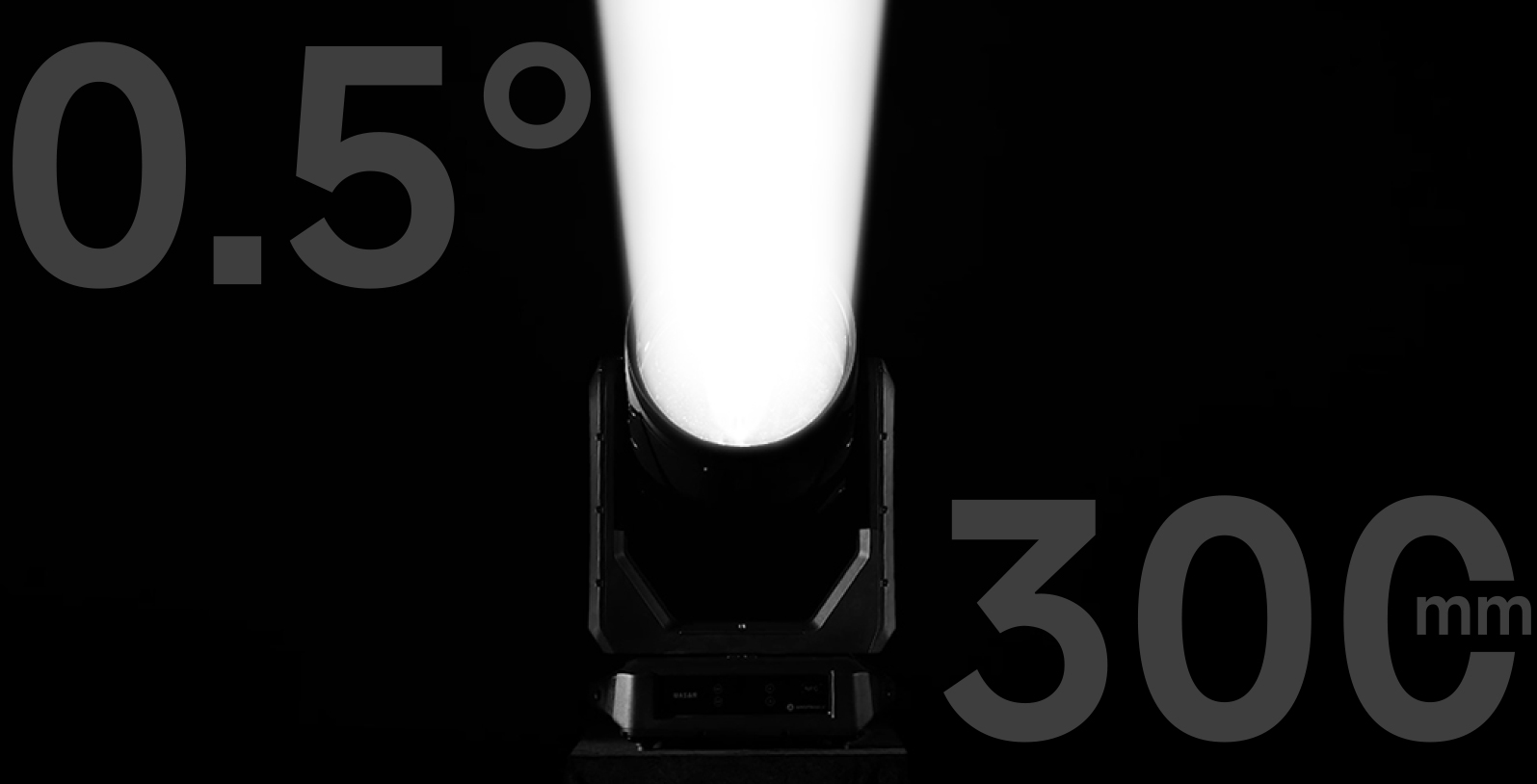

Bold, Razor-Sharp Beam
0.5° Beam Angle, 300mm front lens - precise focus, unmatched penetration.

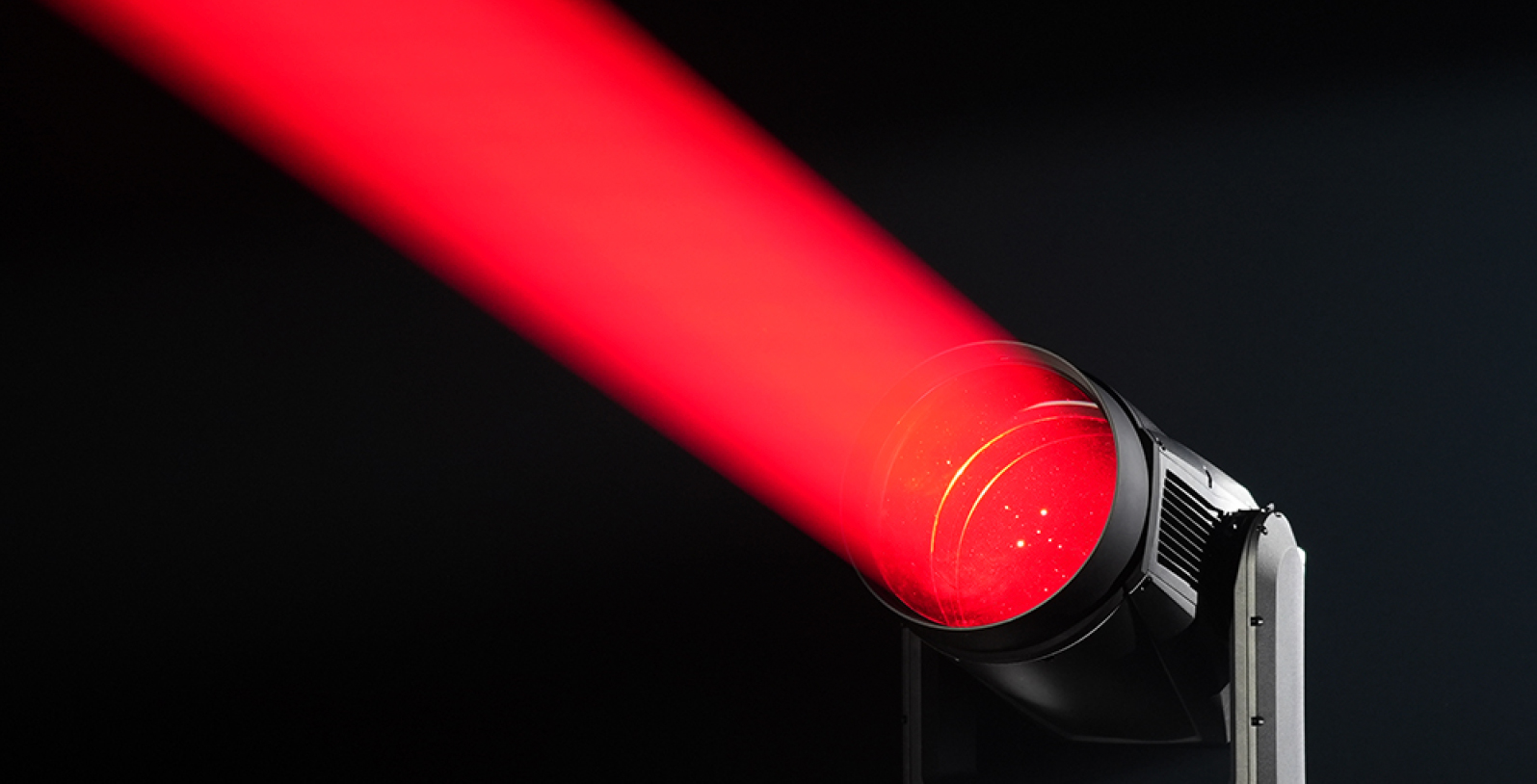

Pure, Crystal-Clear, Brilliantly Vivid Colors
Featuring RGB laser source with extremely narrow wavelengtth and ultra-high color saturation.

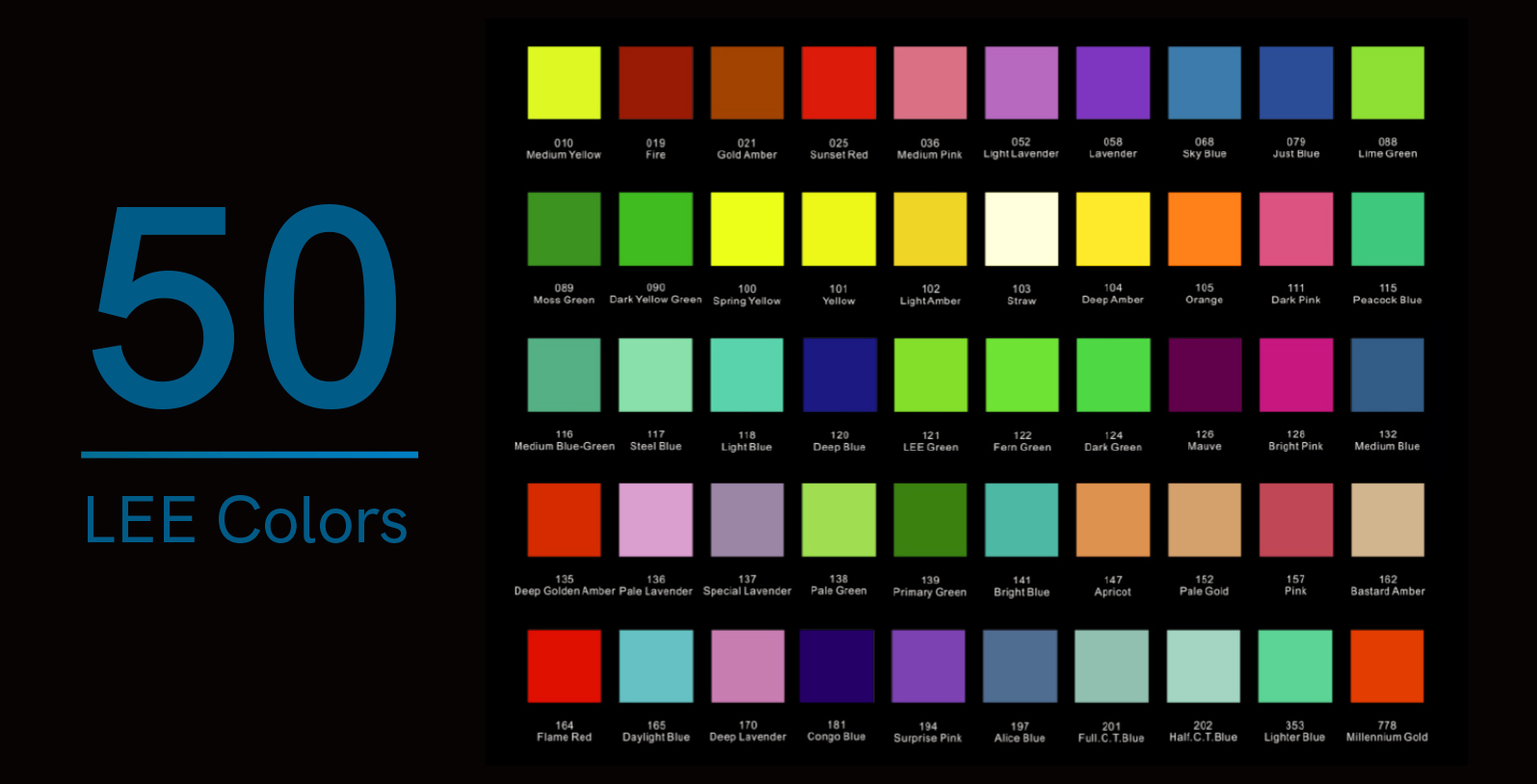

Built-in 50 LEE Colors
Each color precisely calibrated for accurate color coordiihates and exceptional consistency.

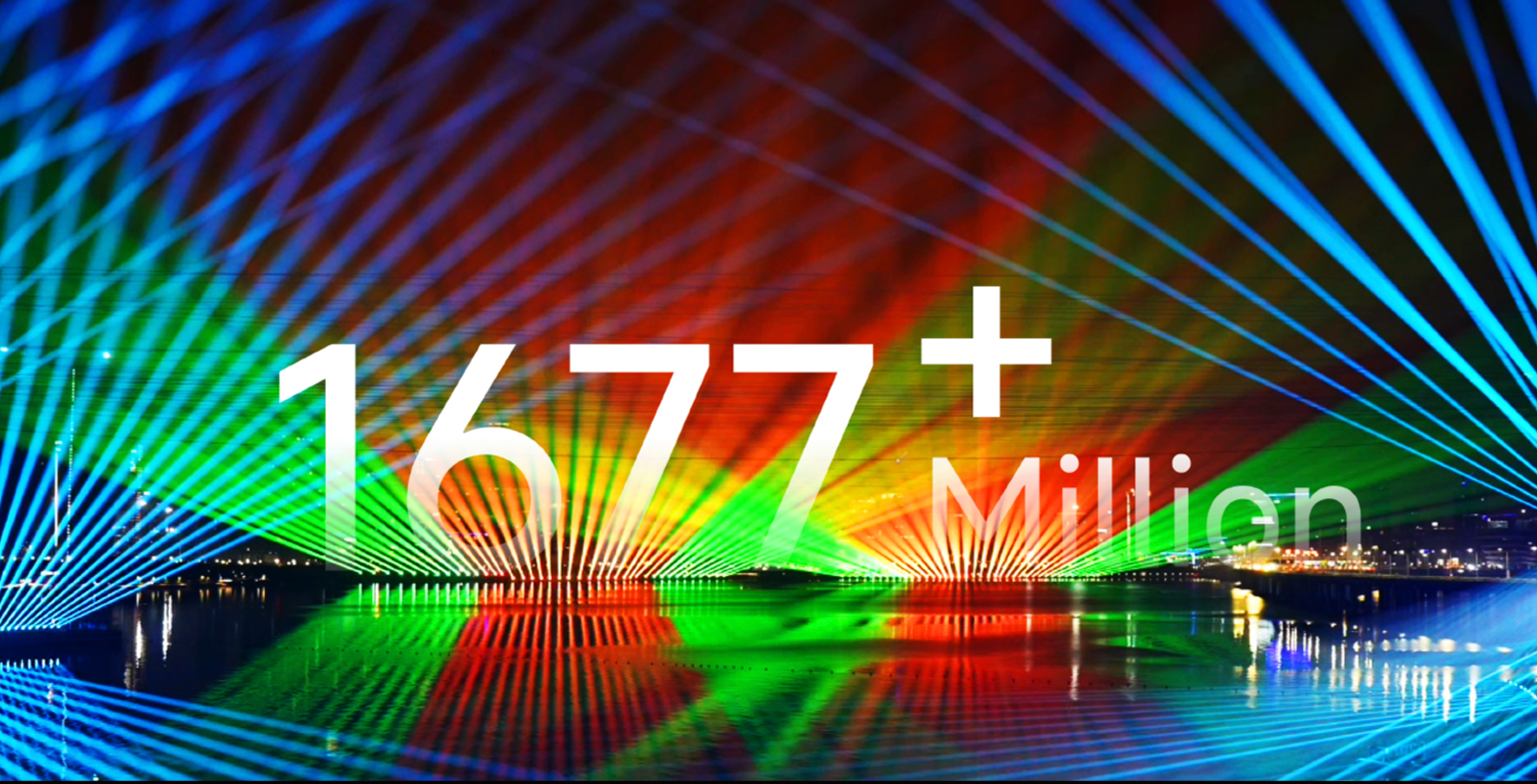

Over 16.77 Million Colors, Unleash Limitless Creativity
RGB color mixing, smooth color transition. 98% BT2020 gamut coverage, delivers true-to-life colors.

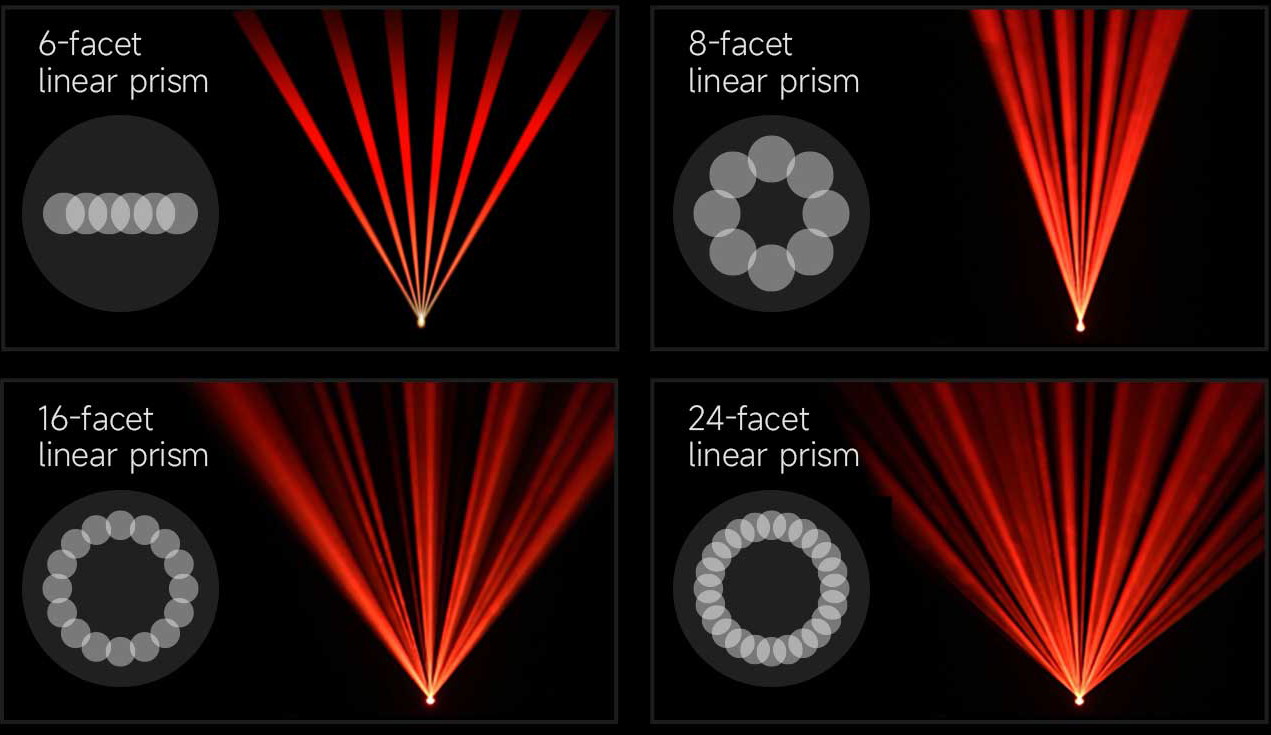

Distinctive mid-air effects and multidimensional light sculptures
6-facet linear prism + 8/16/24-facet circular prisms, supporting indexing and bidirectional rotation, can be layered to craft dynamic, multi-level beam eftects.

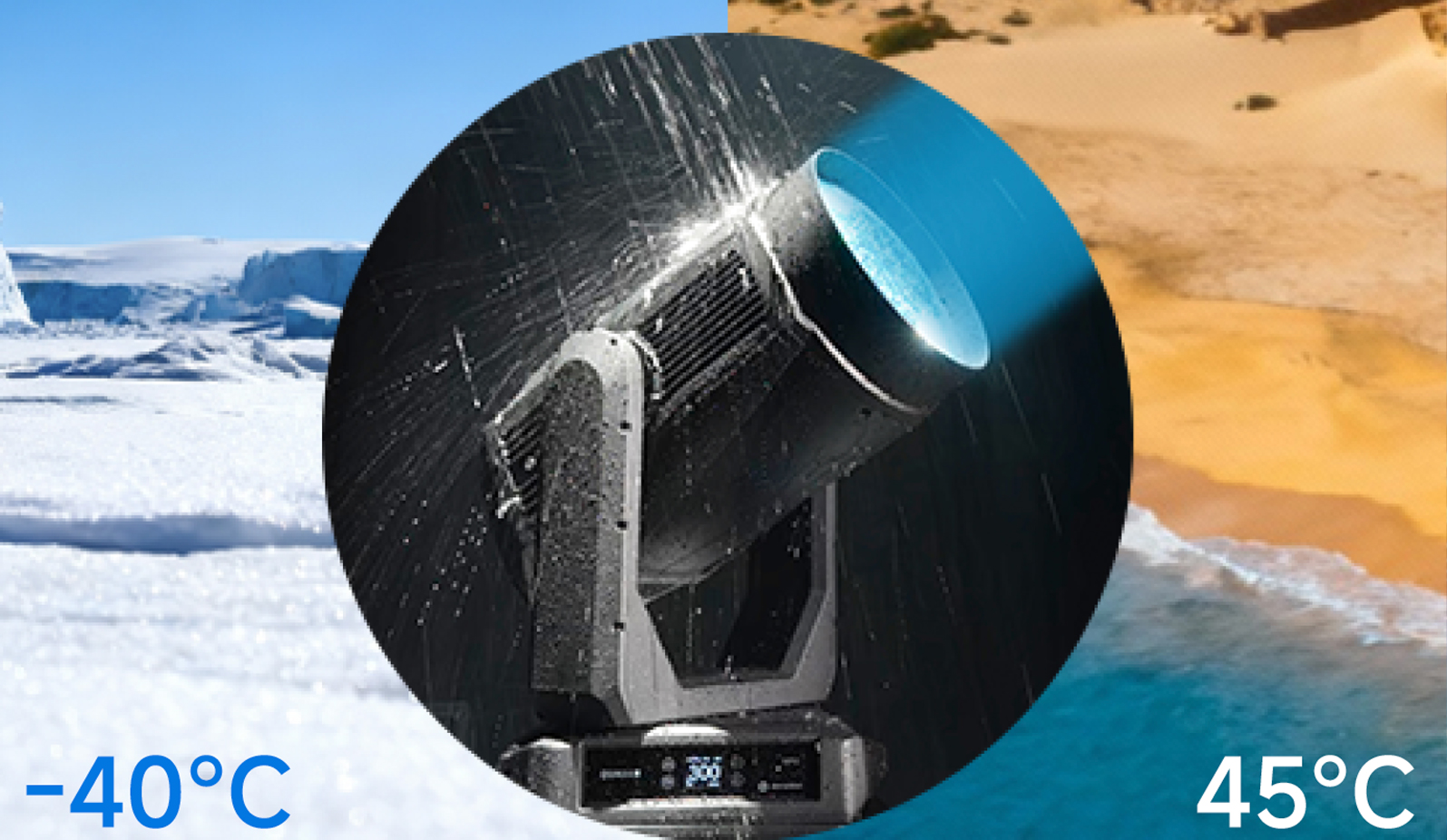

Enhanced Reliability in Harsh Environments
IP66 rated protection, -40°C~45°C operating temperatures, resistant to extreme cold and high temperature.
Premium Quality, Long Service Life Laser Source
Exceptional durability for lower maintenance costs and long-term reliability.

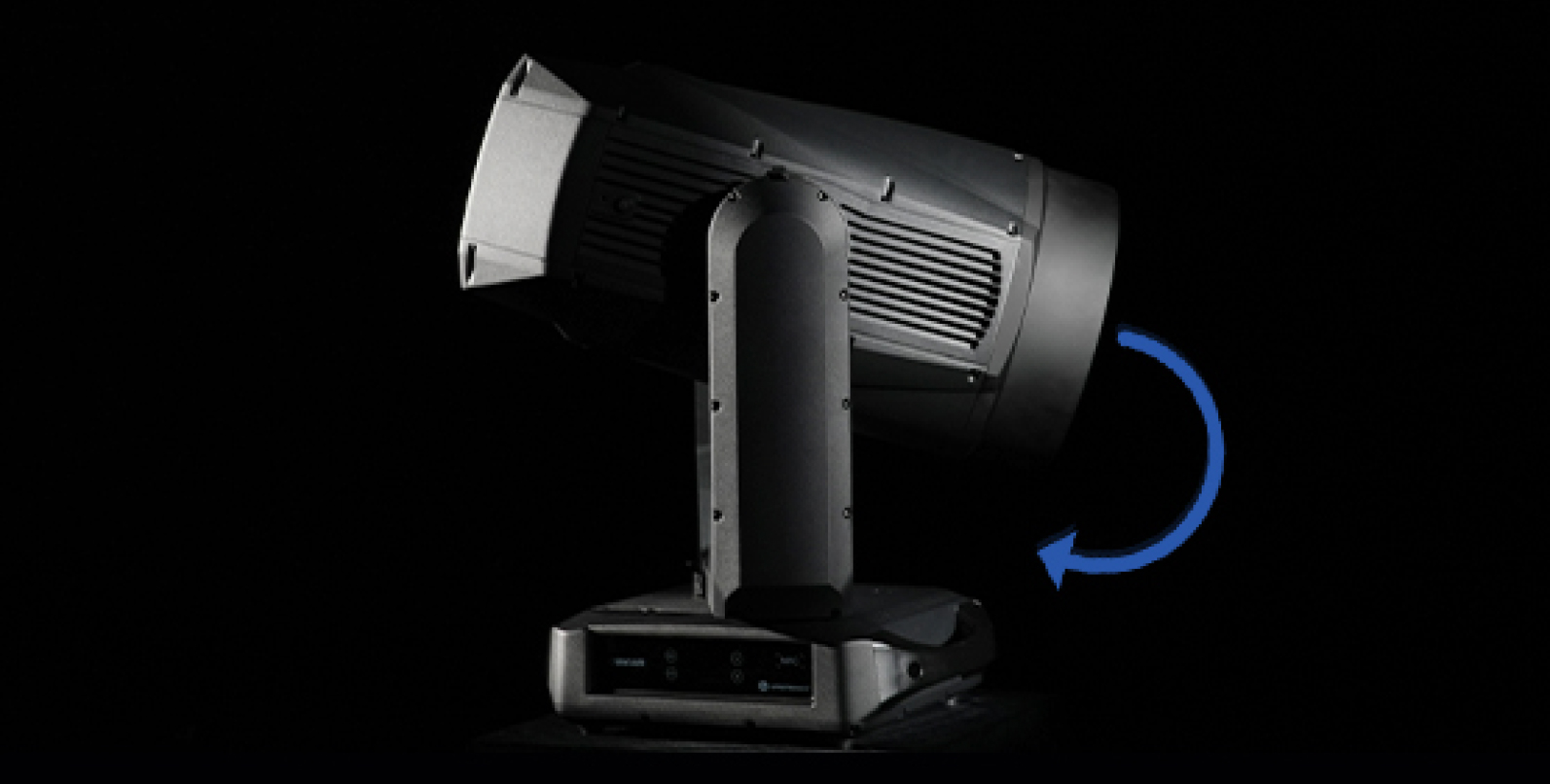

Intelligent Sunlight Protection Mode
Automatically tilts downward to protect internal components from direct sunlight when power is off or DMX signal is lost.

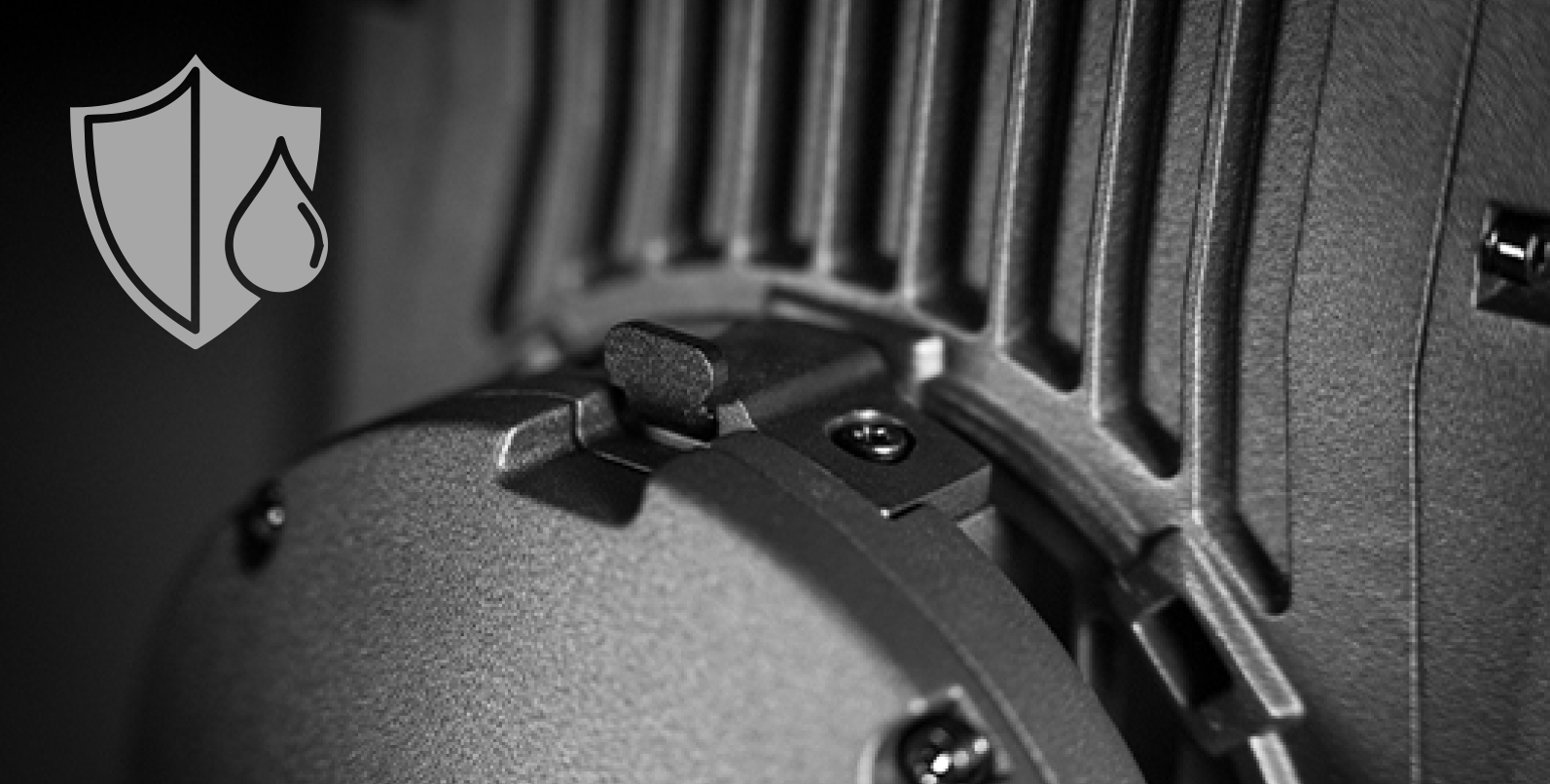

Superior Corrosion Resistance
Proven through rigorous salt mist testing, designed to withstand humid and coastal environments, extending service life.
Specifications
|
Light Source |
Light Source |
850W RGB laser |
|
CCT Adjustment |
3,000K-10,000K linear adjustable |
|
|
Light SourceLifespan |
20,000 Hours |
|
|
Optical System |
Output lens |
300 mm |
|
Fixture output |
22,500 lm | |
|
Beam angle |
0.5° | |
|
Illuminance |
60,000 lux @100 m | |
|
Color System |
Color Mixing System |
RGB color mixing |
|
LEE Colors |
50 Preset LEE color filter | |
|
Color Gamut |
98% BT2020 gamut coverage | |
|
Colors |
16.77 million colors available | |
|
Movement |
Pan |
540° (16 bit) |
|
Tilt |
270° (16 bit) | |
|
Calibration |
Automatic Pan/Tilt position correction | |
|
Fixing Lock Type |
Pan/Tilt lock for transportation and maintenance | |
|
Dynamic Eects |
Prisms |
6-facet linear prism + 8/16/24-facet circular prism, can be overlapped, indexing and rotating in both directions |
|
Dimming |
0-100% Linear Dimming |
|
|
Strobe |
Up to 25Hz, Random or Pulse Strobe |
|
|
Control and Programming |
Buttons |
4 Touch Buttons |
|
Control Panel |
LCD Display |
|
|
Control Protocols |
DMX512, RDM, Art-Net, sACN |
|
|
DMX Channel Modes |
2 modes |
|
|
Control Channels |
23 |
|
|
Firmware upgrade |
Upgrade via DMX or USB stick |
|
|
Thermal Specification |
Maximum ambient temperature |
45°C |
|
Minimum operating temperature |
-40°C |
|
|
Maximum surface temperature |
70°C |
|
|
Ingress protection rating |
IP66 |
|
|
Electrical and Connectors |
Input voltage range |
180-240V- 50/60Hz |
|
Power consumption |
1500W |
|
|
Power in/out |
Waterproof power connector |
|
|
Data in/out |
3-pin or 5-pin waterproof XLR,RJ45 connector |
|
|
Mechanical Specification |
Dimensions |
Width: 465 mm; Depth: 365 mm; Height: 854 mm |
|
Weight |
59 kg |
|
|

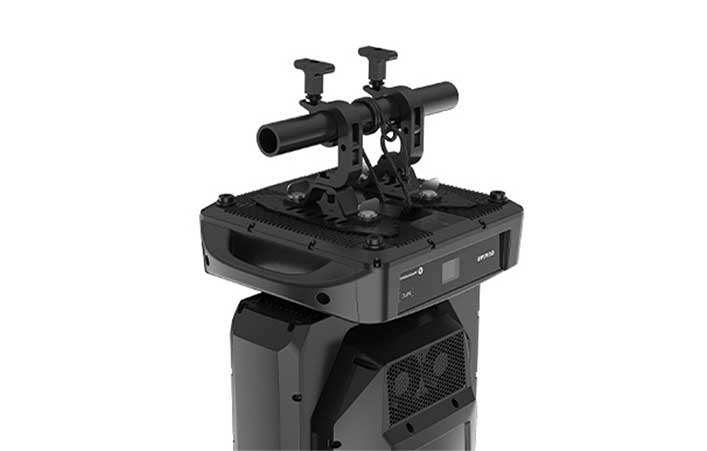

Mounting Methods |
Mounting Methods |
Horizontal/vertical mounting, 360° mounting |
|
Included Accessories |
Included Accessories |
Digital user manual, Power Cable, 2 ×Omega brackets |
